BSIDE 20000 Counts Digital Multimeter Tester TRMS, 0.01mV 0.1μA 1500V Smart Photovoltaic Multimeter, Dual Power Supply Voltmeter Amp Meter High Precision with Large Colour LCD and IR Thermometer

Price: £79.99 - £63.99
(as of Sep 29, 2025 02:39:15 UTC – Details)


Why BSIDE V30 Smart Multimeter?
Our new generation multimeter offers you more convenience, more functions and more efficiency:
Measures AC DC voltage, resistance, and continuity in auto or manual mode, easy to use.
Measures DC voltage up to 1500V, AC voltage 750V.
Measures low voltage in mV mode(minumum 0.01mV).
Measures AC DC low current automatically(minumum 1μA).
Measures AC voltage with low-pass filter mode.
Measures frequency, resistance, capacitance, diode and duty cycle.
Measures temperature without contact.
Finds live wire with single test lead.
NCV function with buzzer(Non contact voltage detector).
Multimeter rechargeable supports AAA battery mode.
20000 counts display, high accuracy.

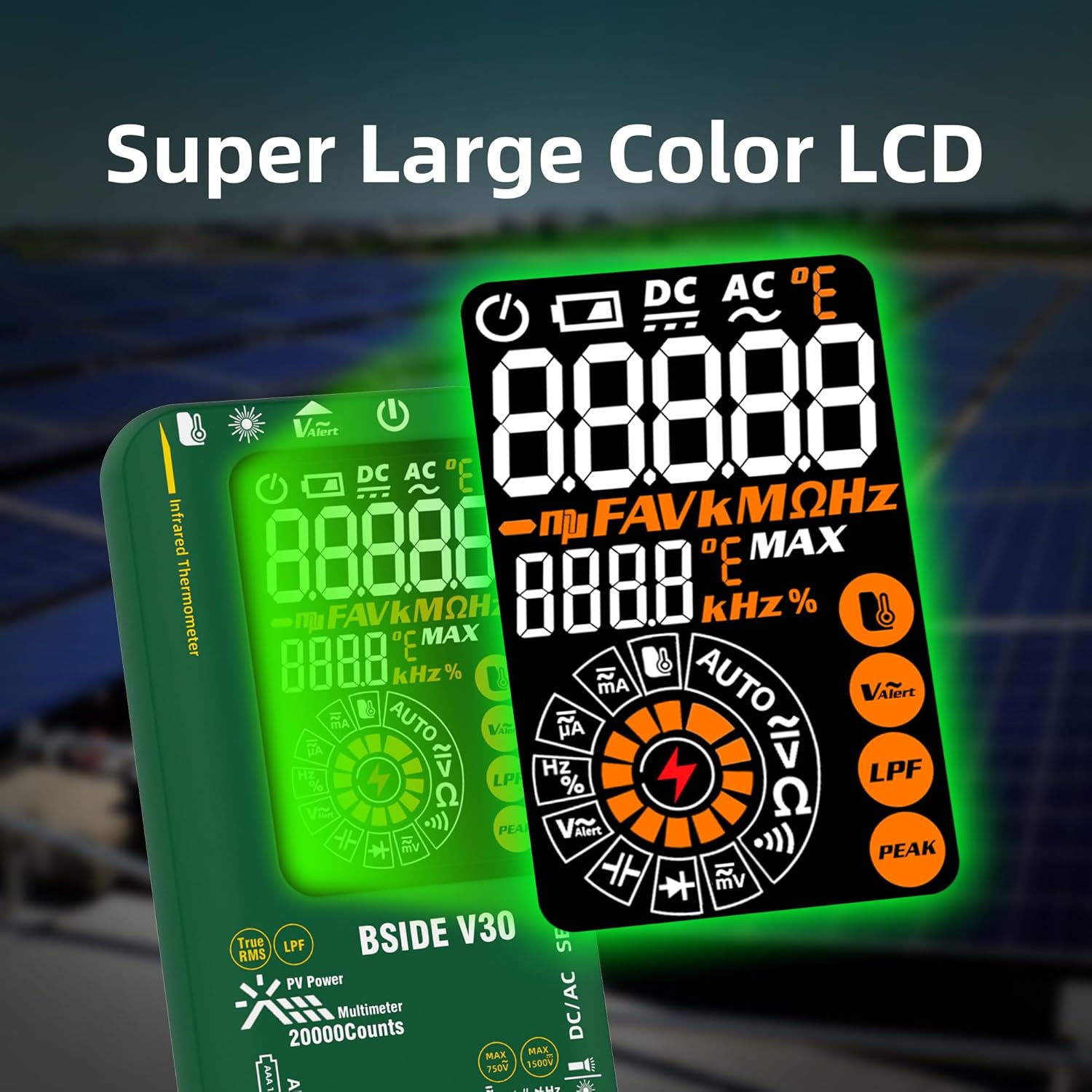

Large colour LCD with big clear readings.
Auto range, auto switch-off, low battery indication.
Anti burned ceramic fuse integrated.
Elegant design and high quality case.
Comes with silicone leather cover.
Specifications:
Display: 20000 counts
Screen: Colour LCD
DC voltage(mV): 0.00mV/199.99mV, 0.01mV, ±(0.1%+3)
DC voltage(V): 2.0000V/20V/200V/1500V, 0.0001V/0.001V/0.01V/0.1V, ±(0.05%+3)
AC voltage(mV): 0.00mV/199.99mV, 0.01mV, ±(0.5%+3)
AC voltage(V): 2.0000V/20V/200V/750V, 0.0001V/0.001V/0.01V/0.1V, ±(0.5%+3)
DC Current: 1999.9μA/199.9mA, 0.1μA/0.1mA, ±(0.5%+3)
AC Current: 1999.9μA/199.9mA, 0.1μA/0.1mA, ±(0.8%+3)
ACV Frequency: 40-1000 Hz
Resistance: 200.00Ω/2kΩ/20KΩ/200KΩ/2MΩ/20MΩ, 0.1Ω, ±(0.5%+3)
Capacitance: 9.999nF/99.99nF/999.9nF/9.999µF/999.9µF/9.999mF/19.99mF, 0.001nF, ±(2.0%+5)
Frequency: 9.999Hz/999.9Hz/99.99Hz/9.999KHz/99.99KHz/199.9KHz 0.001Hz ±(2.0%+10)
Temperature: -20~380°C, -4~716°F, 1°C/1°F, ±(2.5%+3), Object distance ratio:10:1
Duty Cycle: 1.0%-95.0%, 0.1%, ±3%
Continuity: Yes
Diode: Less than 2V
NCV: Yes
Power: 1200 mAh lithium battery or AAA battery *2
Size: 161*78*21mm
Weight: 204g
Package Includes:
Multimeter Tester
Test Leads
Charging Cable
Carrying Case
English User Manual
10μV 0.1μA RESOLUTION: BSIDE V30 auto range multimeter measures DC voltage(0-1500V), with an accuracy of ±(0.05%+3), AC voltage(0-750V), AC DC low current(1μA-200mA), resistance, continuity, millivolt(0.01-200mV), capacitance, diode, duty cycle and photovoltaic voltage etc.
LOW PASS FILTER MODE: LPF function is available, which allows the multimeter to automatically filter out high-frequency AC noise signals and measure only the true RMS value, greatly improving the accuracy and precision of measurements.
DUAL POWER SUPPLY: This rechargeable digital multimeter is powered by a built-in battery and can automatically switch to AAA battery power mode in case of a sudden power shortage. It’s always ready for quick fault finding and emergency repairs, long hours of outdoor work are no longer a problem.
INFRARED THERMOMETER: Can be a infrared thermometer gun, the smart multimeter can test to display real-time and maximum temperature from -20℃ to 380℃. It’s the perfect tool for checking loose and overheated wires, automotive cooling systems and batteries etc. The laser pointer offers an auxiliary aiming function.
MORE ADVANTAGES: This electrical tester features a built-in ceramic fuse, a colour LCD with large, stable and accurate readings, a flashlight for wiring in dark, a silicone leather cover, a carrying case and sharp tips for electrical, electronic, automotive and solar panel measurements.
