BSIDE O1 Digital Multimeter TRMS Handheld Oscilloscope Waveform Generator 3 in 1 10Mhz Rechargeable Multimeter Scope Meter with Colour LCD Screenshot Data Tranfer for Audio DIY Automotive Electronic

Price: £27.99 - £59.99
(as of Sep 29, 2025 01:11:40 UTC – Details)


Features:
Professional high precision multimeter with oscilloscope
Free switching between multimeter and oscilloscope
48MSa/s real-time sample rate, one button auto calibration
Take screenshots, save and export at any time
Fast, stable display and responsiveness
All-in-one and sharp test leads
Voltage detector with flashlight
Comes with high quality case
The firmware version can be subsequently upgraded. Just contact us
Specifications:
Display: 6000 counts
Screen: 2.8 inch TFT Colour
Bandwith: 10MHz
Real-time sample rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Horizontal time base scale: 100ns/div-20s/div
Vertical voltage scale: 20mV/div-100V/div
Max input voltage(osc mode): 300V (DC+AC peak)
DC voltage:
60mV 0.01mV ±(1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V 0.1V ±(1%+5)
AC voltage:
60mV 0.01mV ±(1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5)
DC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
AC current: 6A/10A 0.001A/0.01A ±(1.2%+3)
Resistance:
600Ω 0.1Ω ±(1.2%+5); 6kΩ/60KΩ/600KΩ 0.001KΩ/0.01KΩ/0.1KΩ ±(1.0%+3);
6MΩ 0.001MΩ ±(1.2%+5); 60MΩ 0.01MΩ ±(1.5%+5)
Capacitance: 99.99nF 0.01nF ±(5.0%+20);
999.9nF/9.999µF/99.99µF/999.9µF 0.1nF/0.001µF/0.01µF/0.1µF ±(4.5%+5);
9.999mF/99.99mF 0.001mF/0.01mF ±(5.0%+10)
Diode: Less than 3V
Power: 2000mA battery (rechargeable)
Fuse: 250V/10A, 5x20mm

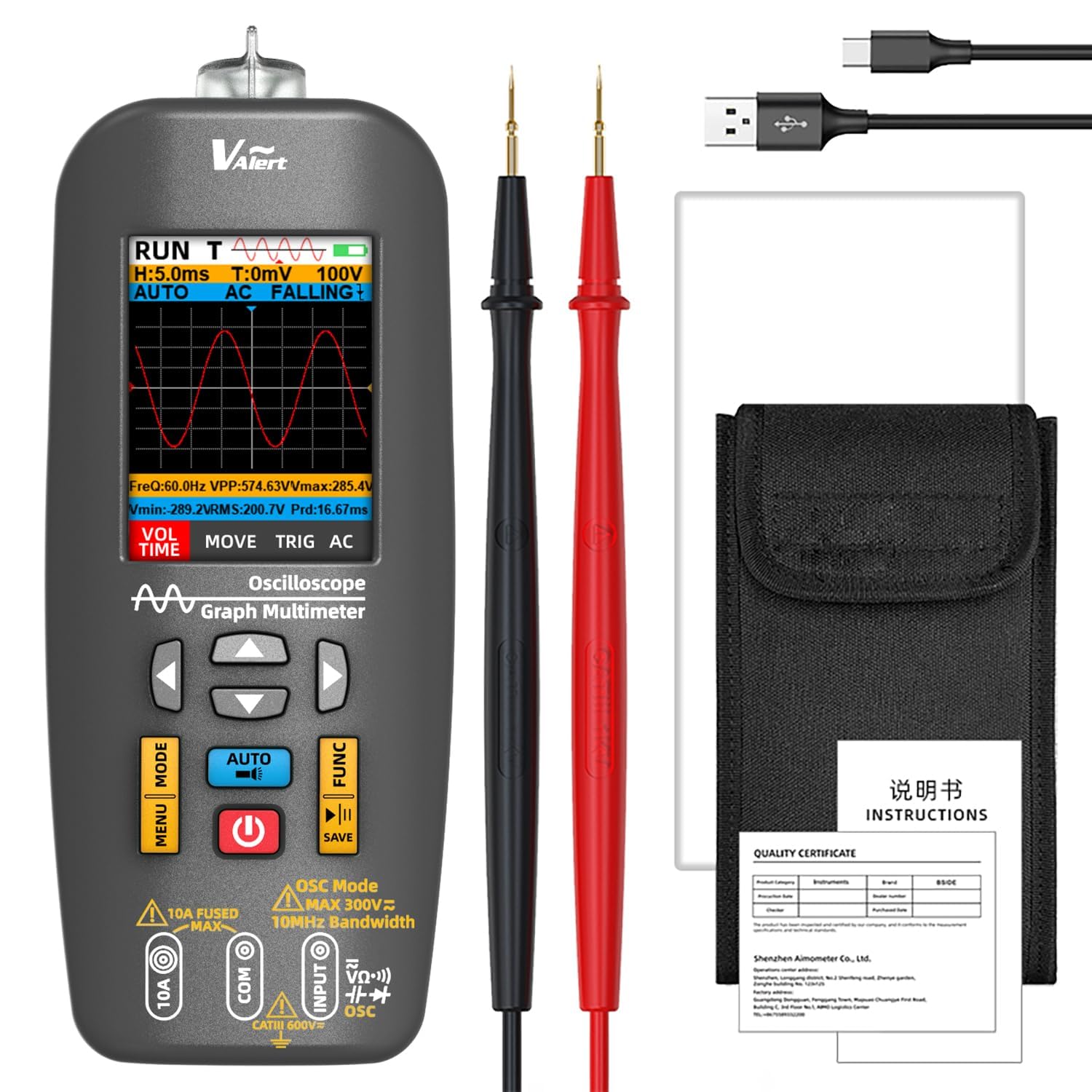

Package list:
O1 Oscilloscope Grey
Test Leads
Carrying Case
Charging Cable
User Manual
[Professional Multimeter]: Latest BSIDE digital multimeter true rms, defaults to multimeter mode when powered on. It measures with accuracy AC DC voltage/current, millivolt, milliamp, resistance, diode, continuity, capacitance, and also can be a non contact voltage detector. One button will lead you to oscilloscope mode.
[Easy Oscilloscope]: Just click the “AUTO” button, the oscilloscope will automatically recognise sinusoidal, square, triangle, and PWM waveforms, etc. and adjust the amplitude and time base for accurate graphical display. With a bandwidth of 10Mhz and adjustable trigger modes (Auto, Manual and Normal), the oscilloscope captures signals and waveforms according to different needs.
[TRMS AC Measurements]: The digital multimeter features a colour LCD, with easy to read MAX/MIN/AVG value, real-time values. When measuring AC voltage or AC current, the multimeter can display the true RMS value. For example, you can easily find out the RMS value and peak value of sinusoidal current to accurately analyse and design your circuits.

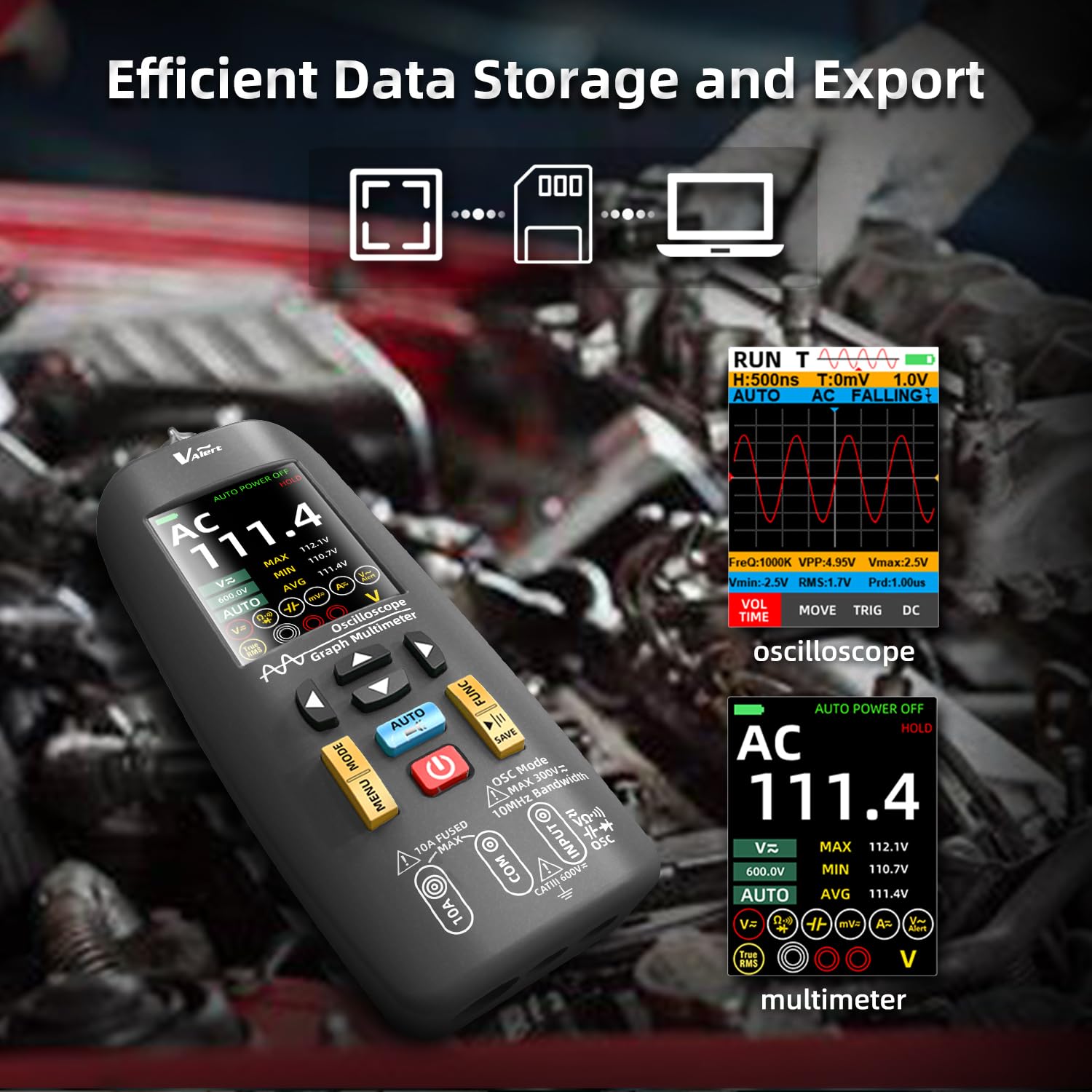

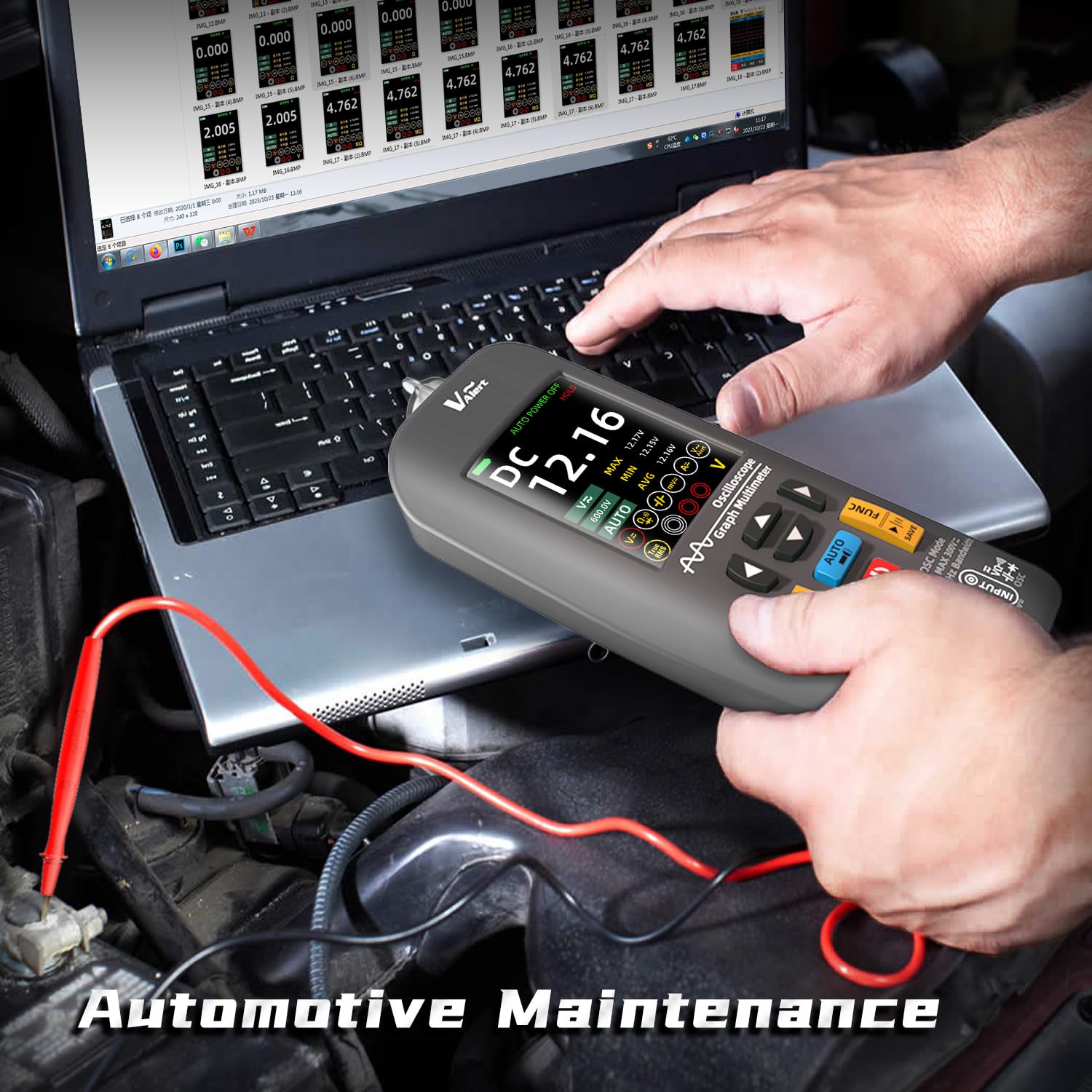

[PC Oscilloscope Multimeter]: This usb oscilloscope tester can take screenshots at any time. Pictures are automatically saved and can be transferred to a PC with the supplied usb cable, for analysis and viewing.

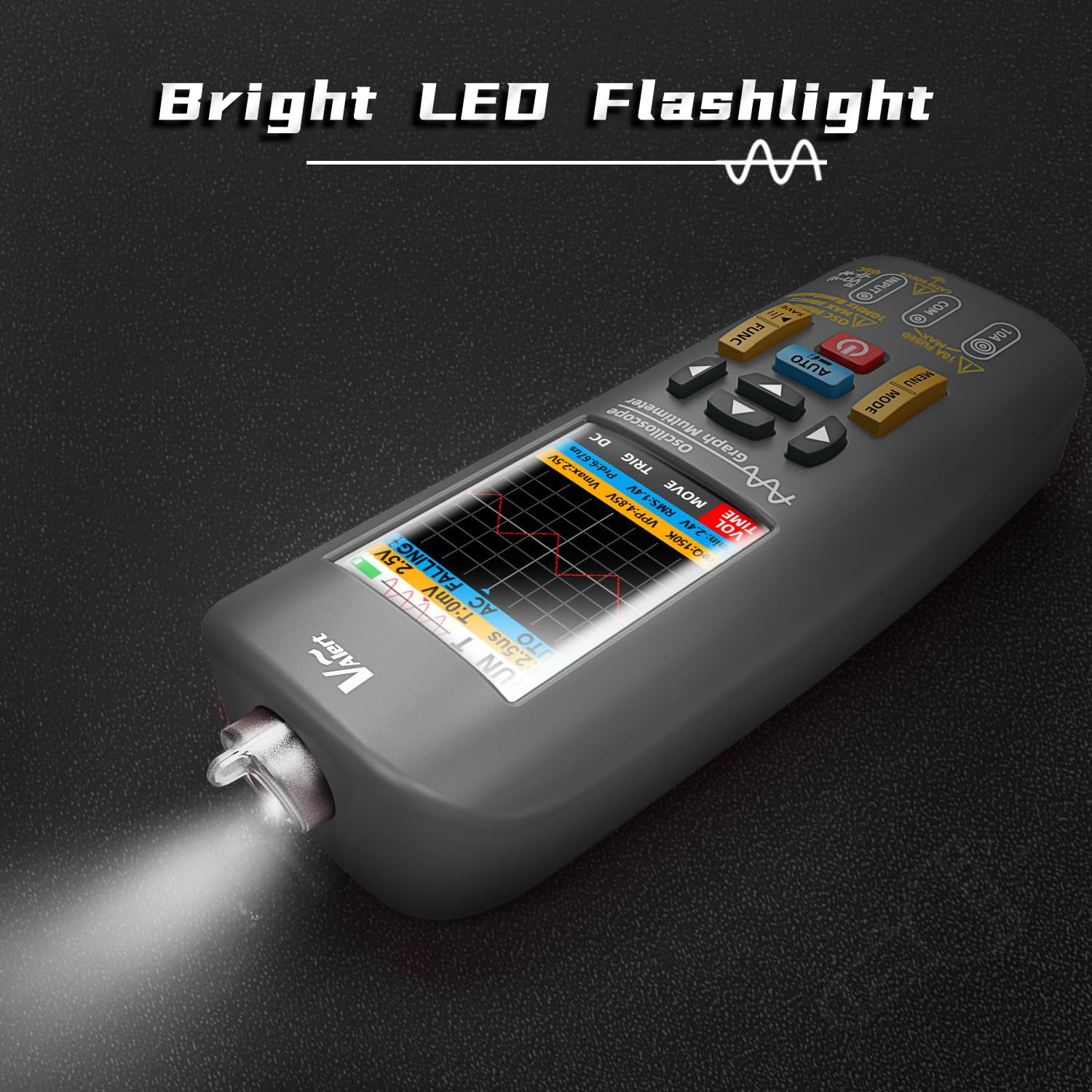

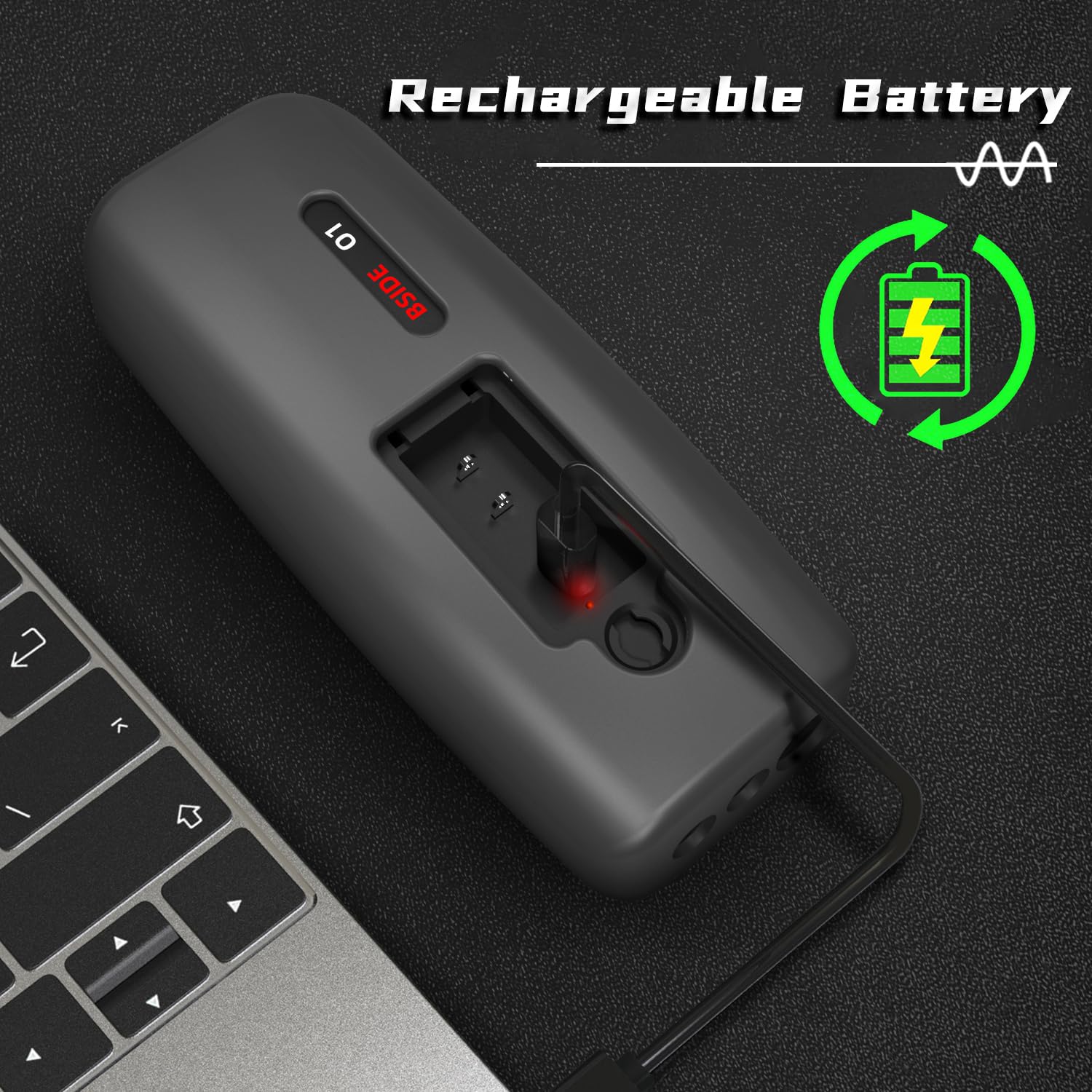

[Rechargeable and More]: With a built-in 2500 mAh rechargeable battery and a brilliant flashlight, long hours of work and wiring in dark are no longer a problem. All multimeter and oscilloscope tasks can be done with the all-in-one test leads. In addition, the built-in fuse can be replaced. It’s an ideal tool for electronic engineers, technicians and DIYers.
