BSIDE Rechargeable Digital Multimeter Voltmeter Smart Electrical Tester Color LCD 3 Results Display 9999 Counts with Smart auto Mode Capacitance Hz Diode Duty Cycle Voltage Tester

Price: £39.99 - £31.99
(as of Sep 29, 2025 00:52:18 UTC – Details)


Looking for a versatile digital multimeter easy-to-use?
Our rechargeable version of BSIDE S10, this S11 smart multimeter is designed for both electricians and beginners. It can automatically identify the parameters under test and select the required range, you don’t need to do anything else. It features:
EBTN screen with 3 test results: Test value, analogue bars and hertz/Ambient temperature.
AC/DC voltage, resistance, frequency, capacitance, diode, continuity and duty cycle test.
Live-wire check and NCV detection.
Auto range, Auto power off, data hold, low battery indication.
Ergonomic, stylish and fashionable design
Specifications:
Max Display: 9999 counts
Display Type: Color
Screen: 3.5 inch EBTN
DC Voltage: 0V-620V ±(0.5%+3); Resolution: 0.001V
AC Voltage: 0V-620V ±(0.5%+5); Resolution: 0.001V
Resistance:1Ω-999.9Ω ±(2.0%+5), 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.1Ω
Capacitance: 1nF-999.9nF ±(6.0%+5), 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V
V-Alert(non-contact voltage detection): beep alarm sounds
Live Check: alarm beep sounds, LCD screen display analogue strips
Continuity: If the resistance is less than 30Ω, the beeper sounds
Power: Rechargeable 3.7 V * 1 battery (included)
Size: 143*69*17mm
Weight: 320g

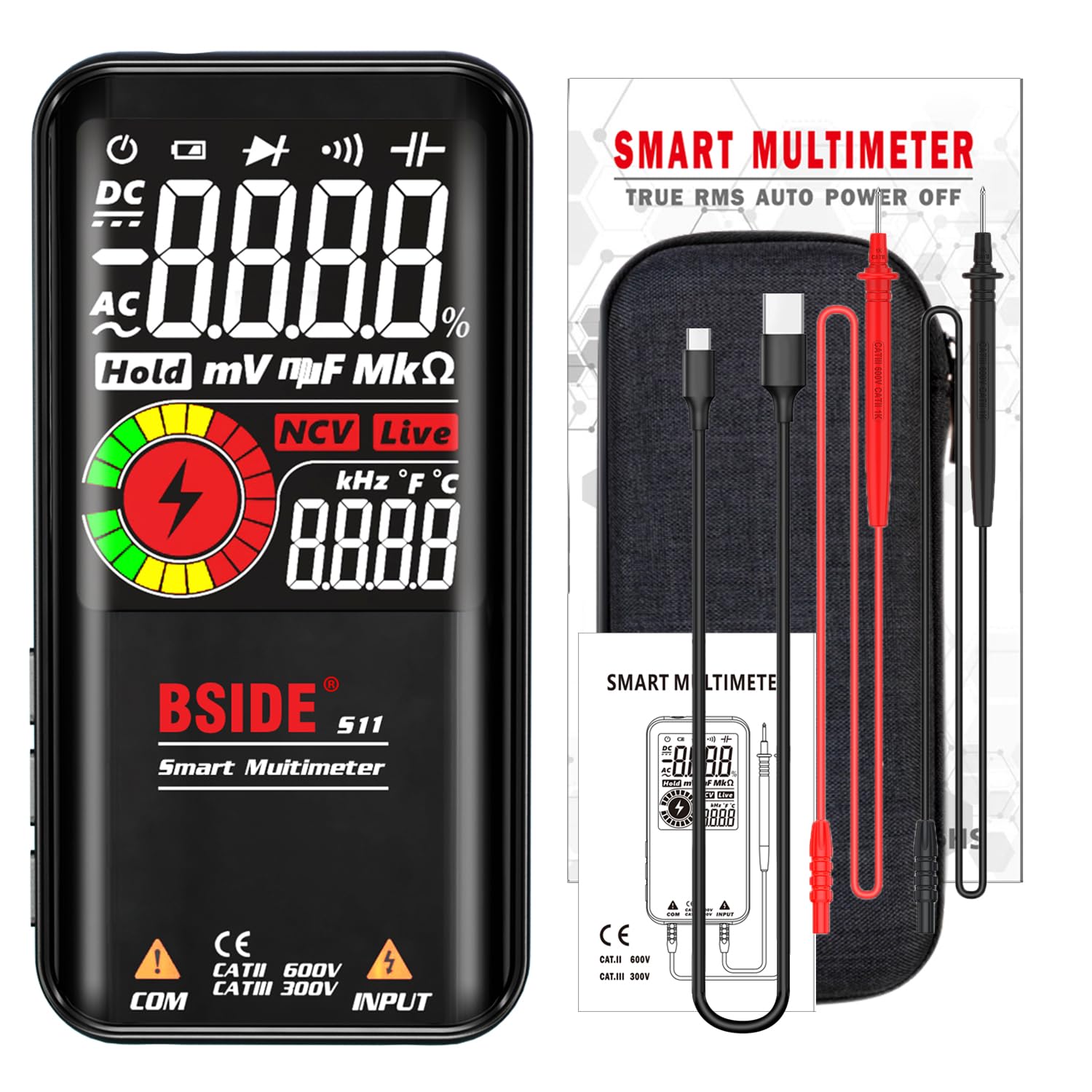

Package Includes:
Smart Multimeter
Test Leads
Carrying Case
Charging Cable
User Manual
EASY TO USE – This intelligent digital multimeter defaults to automatic mode when switched on, quickly and automatically identifying the parameters under test and selecting their measurement range. User-friendly for beginners.
LARGE COLOUR DISPLAY – This automatic multimeter features a large, high-resolution EBTN screen, which greatly enhances the reading experience, even in direct sunlight or low-light conditions.
PRECISION MULTIMETER – This pocket-sized multimeter can accurately test AC DC voltage, resistance, capacitance, continuity, diode, frequency, duty cycle, live wire.
RECHARGEABLE MULTIMETER – Supplied with a built-in, rechargeable li-ion battery and charging cable, you’ll never have to worry about power problems.
ELEGANT AND SAFER – Ergonomically designed, stylish and fashionable, just like a smartphone. Double insulation protection and CE certified, very safe for DIY at home. Supplied with a protective cover and carring case for protection against shocks, friction and bumps.
