BSIDE SH7 Thermal Imaging Multimeter 2 in 1 with 20000 Counts Multimeter TRMS Touch Screen & Thermal Camera 320X320 IR Imaging ‌for Leaks Electronics HVAC Automotive Industrial

Price: £79.99 - £199.99
(as of Sep 28, 2025 16:23:22 UTC – Details)


‌Why BSIDE SH7‌?
‌ ‌Thermal Imaging Meets Multimeter Mastery! ‌Revolutionize Your Diagnostics with BSIDE SH7, which combines a ‌high-precision multimeter‌ and ‌industrial thermal camera‌ in one hand, letting you:
Save 50% Diagnosis Time
Detect faults faster with dual-mode analysis.
Visualize Hidden Risks‌:
Spot immediately overheating wires, overloaded circuits, or HVAC leaks with vivid 320×320 thermal imaging.
Measure Everything
This auto-ranging multimeter handles AC/DC voltage(0.001mV-1000V), AC peak values, resistance, capacitance, diodes, continuity, and temperature etc.
Easier to Operate
The 3.98” touchscreen delivers clear thermal maps and live data. The quick-touch operating experience also helps you diagnose faults faster.
‌ Expand Your Power
Support high-current systems safe measurements (e.g., industrial motors, high-power circuits) with flexible current clamp (Optional).
Applications
‌ ‌Industrial Maintenance‌: Detect motor overloads, transformer hotspots, or faulty relays.
‌Electrical Repair‌: Troubleshoot short circuits in seconds—no disassembly needed.
‌Energy Audits‌: Optimize efficiency with thermal leak detection.
Home security: Safeguard your family with early fault detection, etc
Specifications:
Multimeter:
Display: 20000 counts
Screen: 3.98 inch TFT 480*320
DC voltage: 0-1000V, ±(0.05%+3)
AC voltage: 0-750V, ±(0.5%+3)
AC current: 1-2000A
Resistance: 0-200MΩ, ±(0.5%+3)
Capacitance: 0.01nF-99.999mF, ±(2.0%+5)
Temperature: -20~1300°C, -4~2372°F, ±(2.0%+5)
Continuity: Yes
Diode: Yes
Thermal Imager:
IR Resolution: 320 x 320
Thermal sensitivity(NETD): ≤ 60mK
Field of View (FOV): 50.0°(H)x 50.0°(V)/72.1°(D)
Spatial Resolution (IFOV): 8.89mrad
Refresh Rate: 25Hz
Infrared spectrum bandwidth: 8-14 µm
Focal Length: 1.35mm
Thermal Palettes: 15
Temperature: -20℃-550℃(-4℉-1022℉)
Accuracy: ±2°C or ±2%
Resolution: 0.1°C
Emissivity: 0.01-1.00 adjustable
Distance Settings: 0.3-3m adjustable
Number of image storage: 19000
Size: 169*81*26.8mm
Weight: 270.7g
Package Includes:
Thermal Multimeter
Test Leads
Charging Cable
Carrying Case
K Type Thermocouple
English User Manual
ALL IN ONE EFFICIENCY‌: ‌The BSIDE SH7‌ redefines efficiency with its ‌2-in-1 thermal imaging and multimeter‌ design. Detect faults faster, visualize risks in real time, and conquer any challenge – from industrial maintenance to home safety – with one revolutionary multi tester.
20000 COUNTS MULTIMETER: True RMS, auto-ranging, measures ‌1000V DC/750V AC‌, plus resistance, capacitance, continuity, diodes, temperature, AC/DC millivolts, and AC peak values.

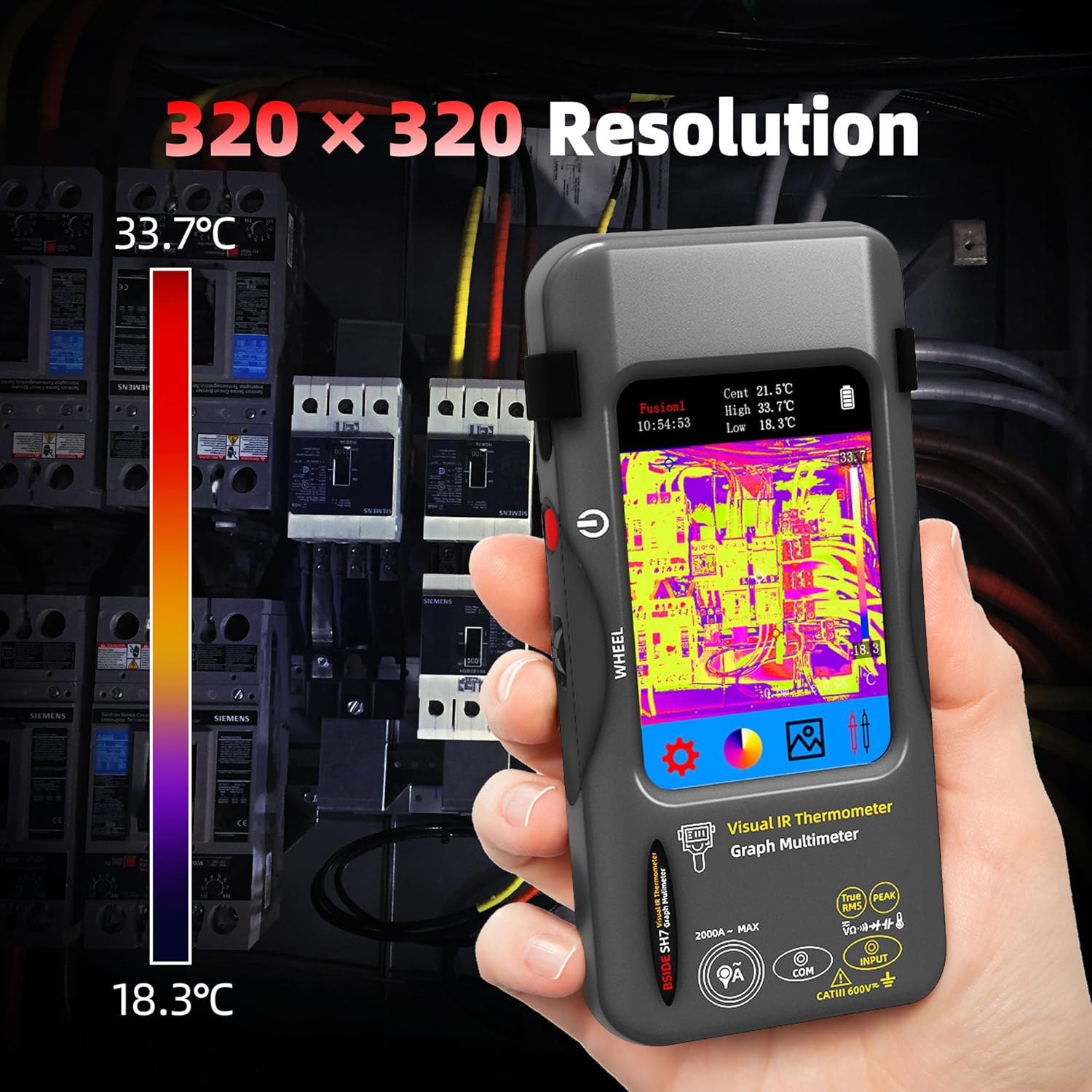

320×320 THERMAL IMAGING: Integrated thermal camera auto-tracks max/min/centre temperatures across -20°C to 550°C with ‌±2°C accuracy‌, ‌real-time alerts‌ and ‌15 color palettes‌, instantly pinpointing overheated circuits, loose connections or water/air leaks, etc.‌‌
TOUCH CONTROL & MULTILINGUAL UI: 3.98″ TFT full viewing angle Display and ‌7-language UI‌ (EN, ES, DE, FR, IT etc.) for effortless navigation and seamless operation.
ACCURATE MEASUREMENT: True-RMS measurement‌ with ±‌0.05% accuracy‌, ensures reliable data in complex electrical environments.
BUILT TO LAST:‌ IP54 protection, 1.5m drop resistance, and dual-molded casing for harsh job sites. Save up to 19,000 thermal snapshots and transfer via USB for reports.
PROFESSIONAL SERVICE: Two-year warranty, 24/7 after-sales service support. Package includes tester, 47-core silicone test leads, premium carrying case, thermocouple, usb cable and free subsequent firmware upgrades.‌
