Product Description
100pcs Solder Seal Heat Shrink Butt Wire Connector Terminals Copper
In the world of electricity, connection is the bridge, while safety is the eternal pursuit. Waterproof heat-shrinkable terminals, made of high-quality heat-shrinkable material, bring unprecedented waterproof and anti-corrosion protection to electrical connections.Whether in harsh outdoor environments or in humid spaces, it ensures the sealing of wire connections, prevents moisture intrusion, avoids short circuits and oxidation.Its convenient installation method, a contraction between a pressure, can achieve a solid connection, so that the maintenance work becomes easy and efficient.
Why choose our Wire Connectors:
An easy one step connection of wires, soldered, insulated and sealed. Can be ideal use in marine and automobile applications.Polyolefin tubing in outside and hot melt adhesive in inside. Solder and seal and with advanced waterproof function.Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation.Red & clear: 0.5-1.50mm2 (40pcs)Blue & clear: 1.50-2.50mm2 (20pcs)Yellow & clear: 4.00-6.00mm2 (5pcs)White & clear: 0.25-0.35mm2 (30pcs)
IP67 water resistance is provided through solder seal wire connectors. They shrink after being heated, preventing water from entering and causing short circuits.
To avoid shrink tubing melting before the solder ring, our heat shrink electrical connectors have been modified to employ proprietary material in the butt connectors. The success rate of joining wire has significantly increased.
2:1 heat shrink wire connectors in the following 4 colors: red 40PCS, white 30PCS, blue 25PCS, yellow 5PCS, which can meet multiple wiring needs (26-10AWG).
Material: Polyolefin
Size: approx. 40*5*5mm
Cross-sectional area: 0.25mm2 – 6.00mm2
Voltage: max. 600V
Melting temperature: 138℃
Shrink ratio: 2 : 1
100Pcs Solder Wire Connector: This solder sleeve heat shrink seal electric butt wire connectors features with polyolefin tubing outside, hot melt adhesive and solder inside. When the shrinkage reach 2:1, The solder wire connectors tends to shrink and then forming a strong bond.
Widely-used Solder Wire Connections: The waterproof self soldering wire connectors are optimal for your marine, vehicle, aircraft, home and even scientific projects. Ensuring secure and weatherproof soldering, Comes with a case with compartments for easy storage and portable use.

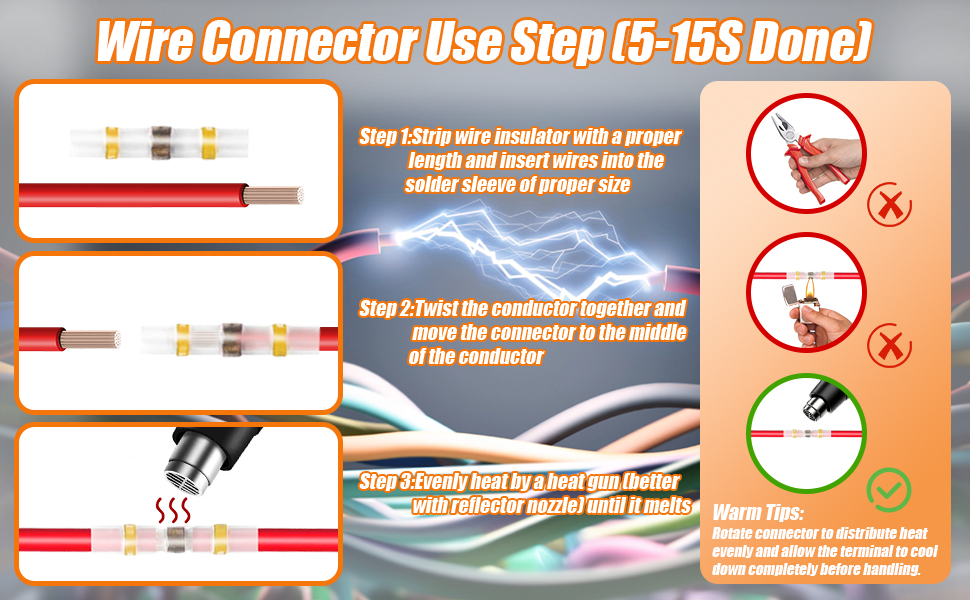

Safe & Easy to Operate: Our electrical wire repair kit meets all Relevant European Standards, No Need to Crimp, Simply Position the Stripped Wires into the Solder Sleeve and Heat Uniformly to Finish the Connection.
No Slip Wire Connect: No crimping required, simply position the stripped wires into the auto wiring connectors and apply heat to complete the connection. When Heating, the Solder Melts to Strongly Hold the Wire, Never Slip Out of the Connector.
Waterproof and Insulation: This heat shrink crimp connector adopted double wall design, ensures waterproof sealing and prevents wire corrosion. The outer polyolefin tube provides insulation and increases pull-out strength; The internal hot melt and solder ensure tight wire connections and prevent wires from slipping out of the terminals.
